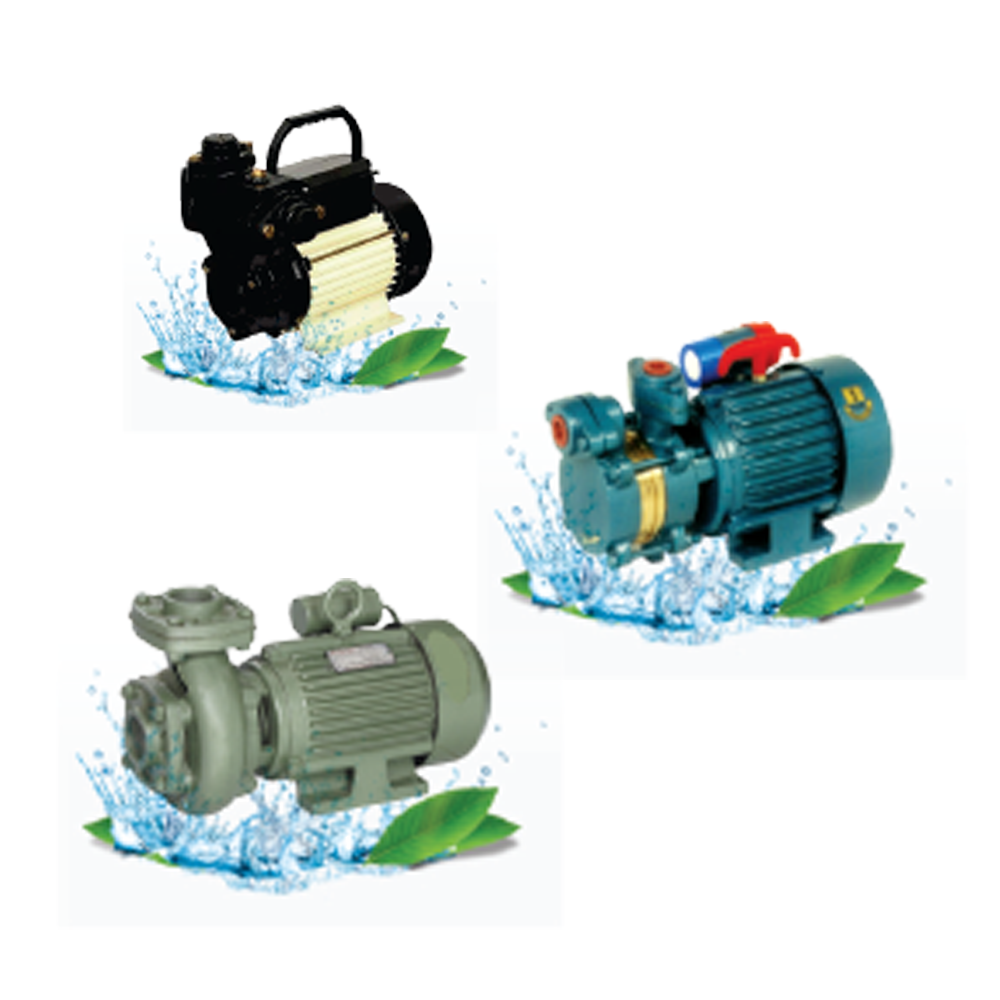

Self Priming Pump Set & Centrifugal Monoblock
Home // Self Priming Pump Set & Centrifugal Monoblock
Self Priming Pump Set & Centrifugal Monoblock
Salient Features
Applications
Salient Features
- High operating efficiency resulting in lower power consumption
- Good suction lift characteristics
- Inbuilt thermal overload protector in al single-phase pump set upto 2.0 HP
- Specially balanced for wide voltage operation
- Dynamically balanced rotating parts including rotor and impeller ensures minimum vibration and longer life
- Back pull-out design for easy servicing and repair
- Double-shielded ball bearings, so no need of external lubrication
- All model fitter to mechanical seal
- One-year warranty on manufacturing defect
Applications
- Domestic, Farming
- Cooling Water Circulation, Booster Applications
- Sprinkler Irrigation, Drip Irrigation, and Gardening
- Domestic and Community Water Supply, Drinking Water Supply
- Fire Fighting, Fountains
Technical Specification
Material of Construction
Technical Specification
| H.P. Range | 0.5 to 2.0 H.P. Single Phase, 1.0 & 2.0 H.P. Three Phase |
| Operating Discharge Range | 15 to 450 L.P.M |
| Operating Head Range | 5 to 20 Mater |
| Speed | 2800 RPM |
| Operating Voltage Range | 180 to 230 Volt Single Phase , 380 to 440 Volt Three Phase |
Material of Construction
| Motor Body | C.I. FG-260/Aluminium |
| Stamping | CRNGO 50C-1000 Grade |
| Rotor | Aluminum Pressure Diecast |
| Bearing | SKF |
| Motor Shaft | S.S. 410 |
| Housing, Casing, Bracket. | C.I. FG-260 |
| Winding Wire | EC Grade Enamelled Copper |
