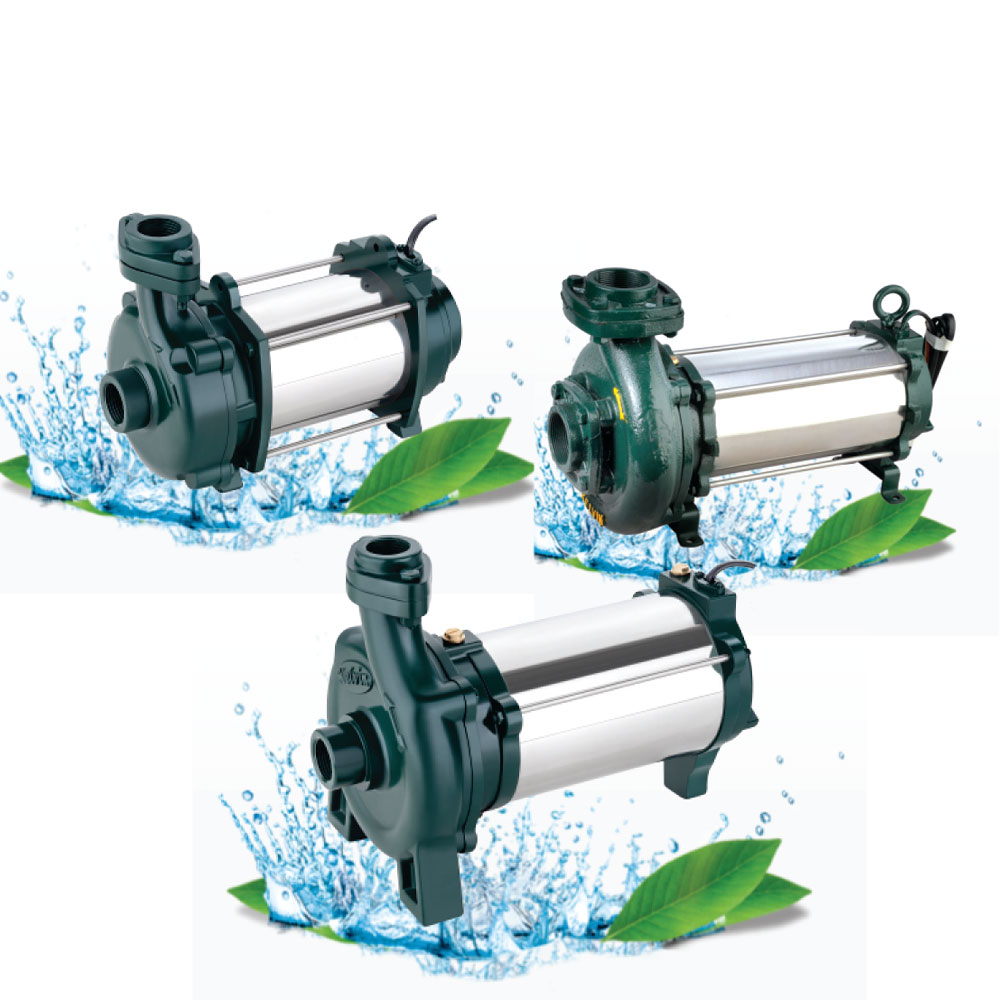

v7 Horizontal Openwell
Salient Features
Applications
Salient Features
- High operating efficiency
- High-capacity winding wire
- Designed for wide voltage operation
- Extremely hard wearing water lubricated bearing
- Can be easily dismantled and repaired
- 15% to 20% less power consumption
- Ensures minimum vibration and More durable
- One year warranty on manufacturing defect
Applications
- Domestic, Farming
- Cooling Water Circulation, Booster Applicationss
- Sprinkler Irrigation, Drip Irrigation, and Gardening
- Domestic and Community Water Supply, Drinking Water Supply
- Fire Fighting, Fountains Housing-Complex
Technical Specification
Material of Construction
Technical Specification
| H.P. Range | 0.5 to 5 H.P. Single Phase, 0.5 to 5 H.P. Single Phase |
| Operating Discharge Range | 50 to 700 L.P.M |
| Operating Head Range | 10 to 38 Meter |
| Speed | 2800 RPM |
| Operating Voltage Range | 180 to 240 Volt Single Phase, 380 to 440 Volt Three Phase |
Material of Construction
| Motor Body | S.S. J4 |
| Stamping | CRNGO 50C-1000 Grade |
| Rotor | EC Grade Copper |
| Thrust Bearing | Carbon & Fiber |
| Motor Shaft | SS-410 |
| Bush | LTB-4 |
| Housing, Casing, Bracket & Outlet | C.I. FG-260 |
| Winding Wire | EC Grade Copper With, Three Coated Polywrap |
