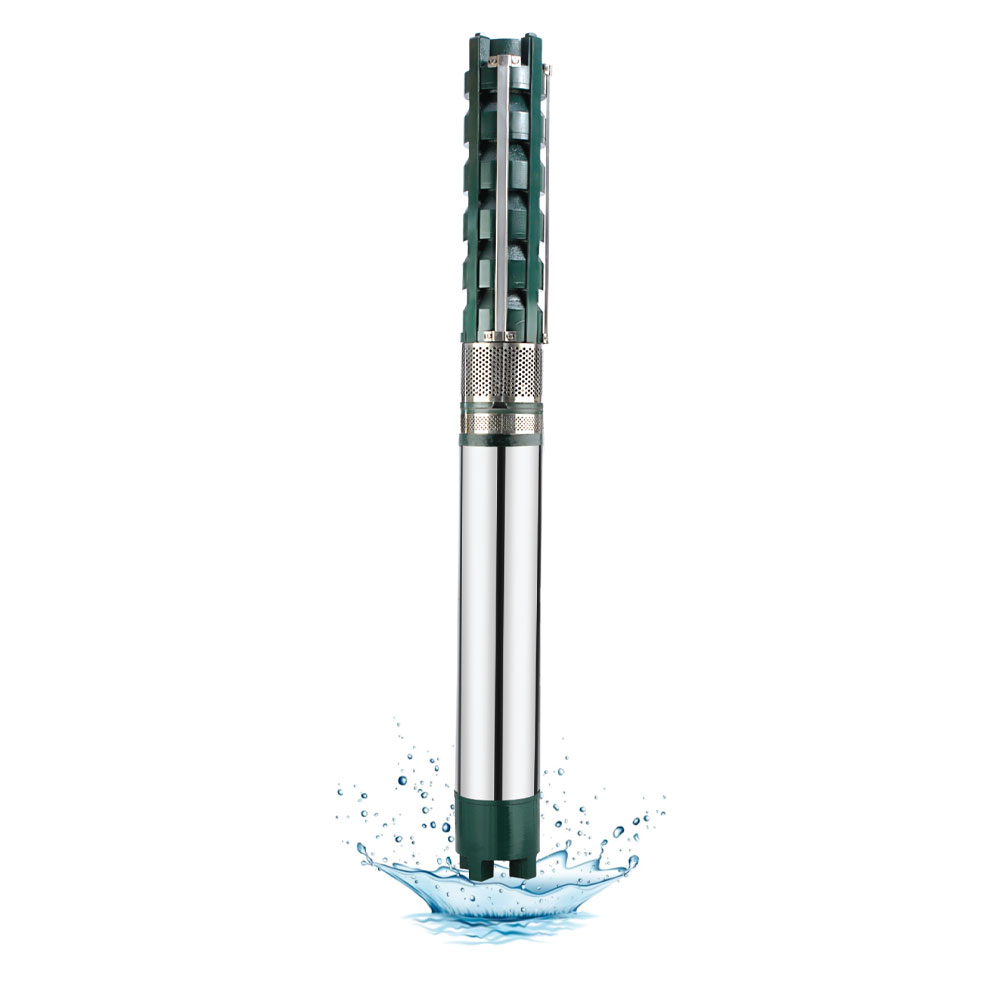

V6 Q-type Premium Series Pump Set
Home // V6 Classic Series Pump Set
V6 Q-type Premium Series Pump Set
Salient Features
Applications
Salient Features
- High operating efficiency
- High-capacity winding wire
- Designed for wide voltage operation
- Extremely hard wearing water-lubricated
- bearing
- 15% to 20% less power consumption
- More durable
- Suitable for 150 mm borewell
- One year warranty on manufacturing defect
Applications
- Agriculture Water Supply
- Cooling Water Circulation, Fountains
- Hospitals and Bunglows
- Gardening and Nurseries
- General Industries and Housing-Complex
Technical Specification
Material of Construction
Technical Specification
| H.P. Range | 3.0 to 25 H.P. Three Phase |
| Operating Discharge Range | 110 to 700 L.P.M. |
| Operating Head Range | 20 to 350 Meter |
| Per Stage Duty Point Head | 12 Meter |
| Speed | 2880 RPM |
| Outlet Size In Inch | 2.0″ & 2.5″ |
| Operating Voltage Range | 380 to 440 Volt Three Phase |
Material of Construction
| Motor Body | S.S. J4 |
| Stamping | CRNGO 50C-600 Grade |
| Rotor | EC Grade Copper |
| Thrust Bearing | Carbon |
| Bush | LTB-4 & PU Rubber Bush |
| Base, Housing, Connection, Suction & NRV Body | C.I/FG-260 |
| Motor Body Shaft | S.S.-431 |
| Pump Shaft & Couple | S.S. 410 & SS – 420 |
| Bowl, Impeller | C.I. Nylon 66 Grade With S.S. Neckring |
| Winding Wire | EC Grade Copper with Three Coated Polywrap |
