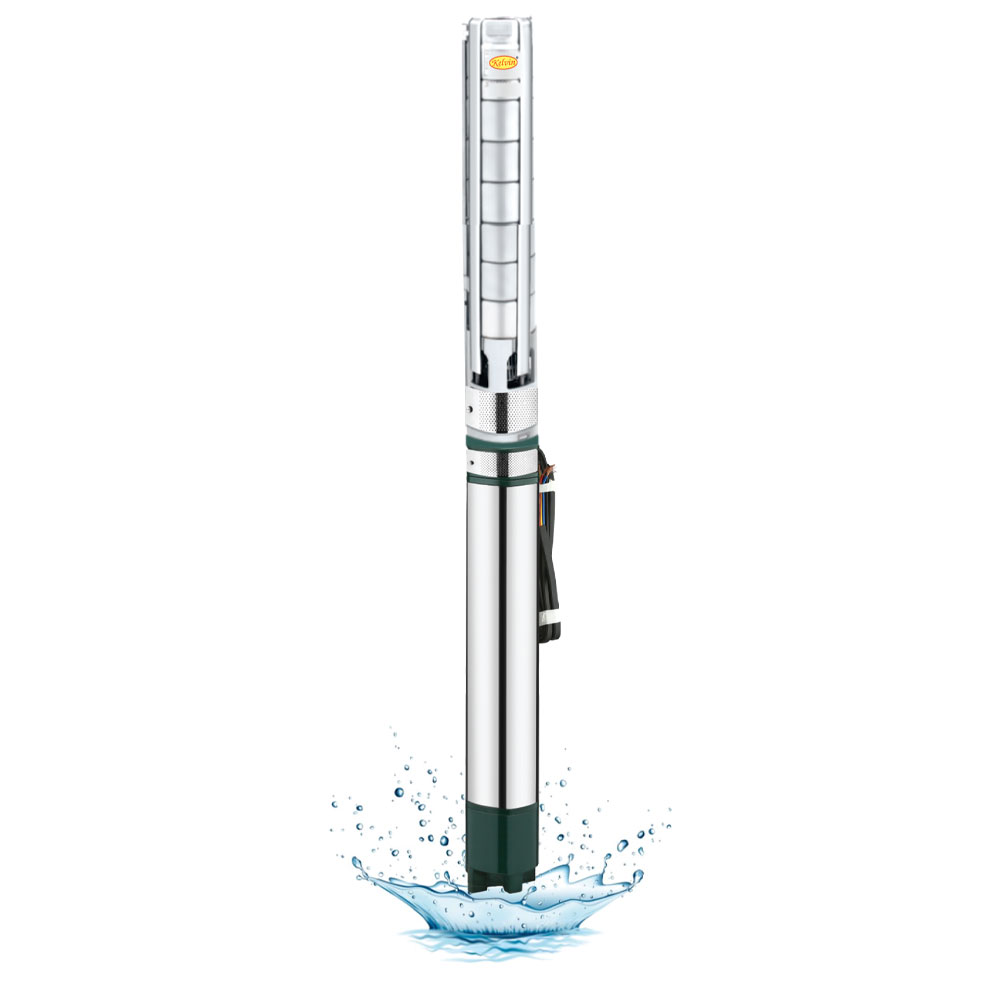

V4 S.S. Fabricated Pump Set
Salient Features
Applications
Salient Features
- High operating efficiency
- High capacity winding wire
- Designed for wide voltage operation
- Extremely hard wearing water lubricated
- bearing
- 15% to 20% less power consumption
- More durable
- Suitable for 100 mm borewell
- One-year warranty on manufacturing defect
Applications
- High-rise Building, Housing-Complex
- Cooling Water Circulation, Booster Applications, and De-watering of Mines
- Sprinkler Irrigation, Drip Irrigation, and Gardening
- Landscaping, Service Station, Fire Fighting, Fountains.
Technical Specification
Material of Construction
Technical Specification
| H.P. Range | 0.5 to 5.0 H.P. Single Phase 1.0 to 7.5 H.P. Three Phase |
| Operating Discharge Range | 30 to 400 L.P.M. |
| Operating Head Range | 21 to 340 Meter |
| Per Stage Duty Point Head | 4 Meter |
| Speed | 2880 RPM |
| Outlet Size In Inch | 1.0″, 1.25″,1.5″, & 2.0″ |
| Operating Voltage Range | 180 to 240 Volt Single Phase, 380 to 440 Volt Three Phase |
Material of Construction
| Motor Body | S.S. J4 |
| Stamping | CRNGO 50C-600 Grade |
| Rotor | EC Grade Copper |
| Thrust Bearing | Carbon |
| Bush | LTB-4 |
| Base, Housing, Connection, | C.I/FG-260 |
| Suction & NRV Body | S.S. 304 |
| Motor Body Shaft | S.S. 420 |
| Pump Shaft & Couple | S.S. 410 & S.S. 420 |
| Bowl | S.S. 304 Fabricated |
| Impeller | S.S. 304 Fabricated |
| Winding Wire | EC Grade Copper with Three Coated Polywrap |
